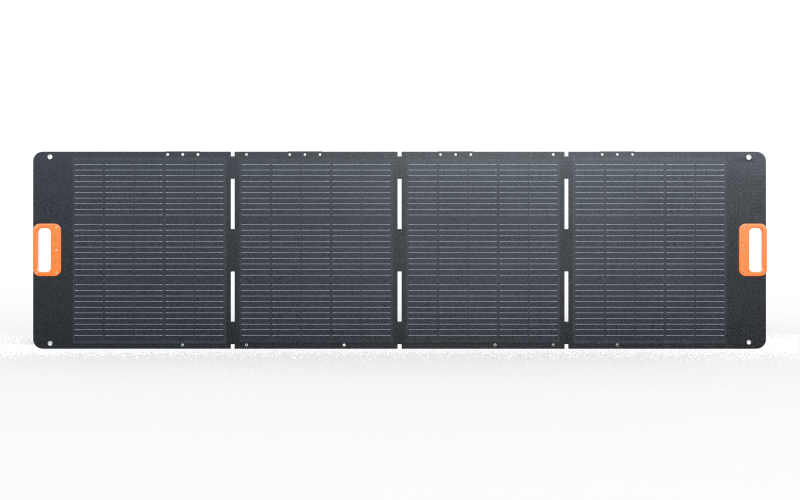

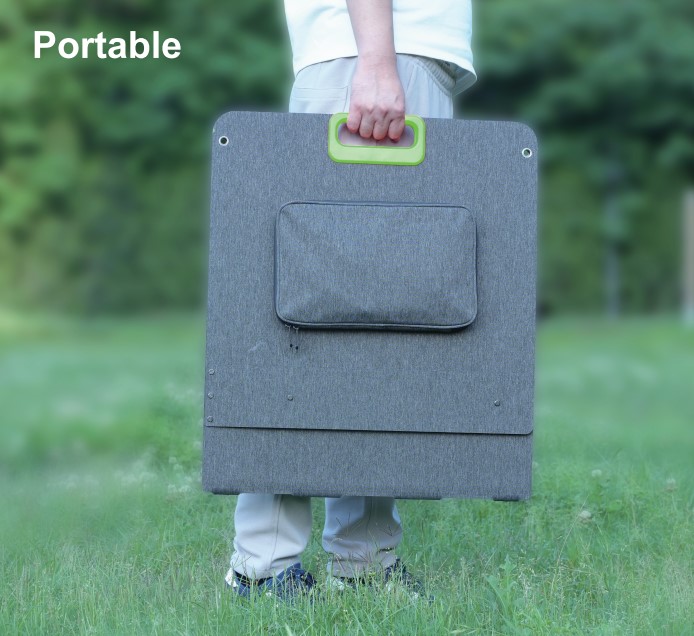

200W Foldable Solar Panel

1.Power Output：200W Max

2.Cell type: Monocrystalline silicon

3.Cell transfer efficiency：23%

4. Fold:4

5.Power Voltage：17.1V

6.Power Current：11.7A

7.Open Circuit Voltage：20.1V

8.Short Circuit Current: 12.3A

9.Output Connector: DC8020/XT60/Anderson/DC7909

10.Operating Temperature: -20℃ to +60℃

11.Storage Temperature: -20℃ to +60℃

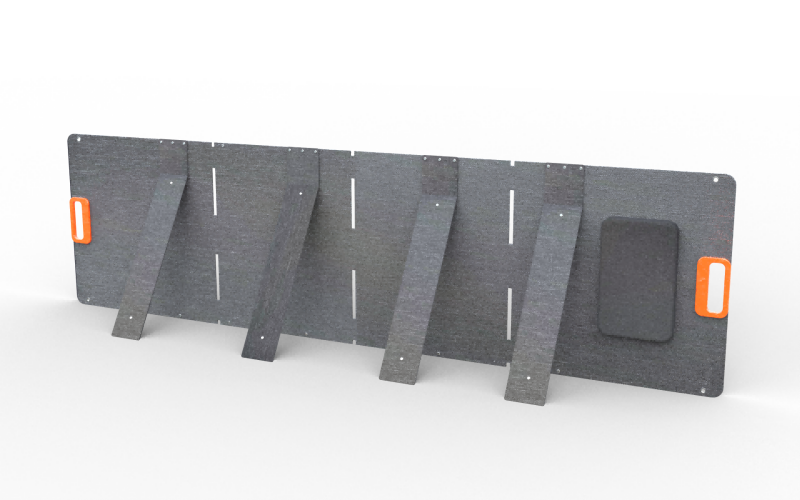

12.Bracket: Yes

13.DC Charging Cable Length: 2M

14.Folded Size：592*588*82mm

15.Unfolded Size: 2179*588*35mm

16. Net Weight: 9.5kg
