100W Foldable Solar Panel

Online inquiry

Previous Next

Detailed content Specification parameter Product packaging

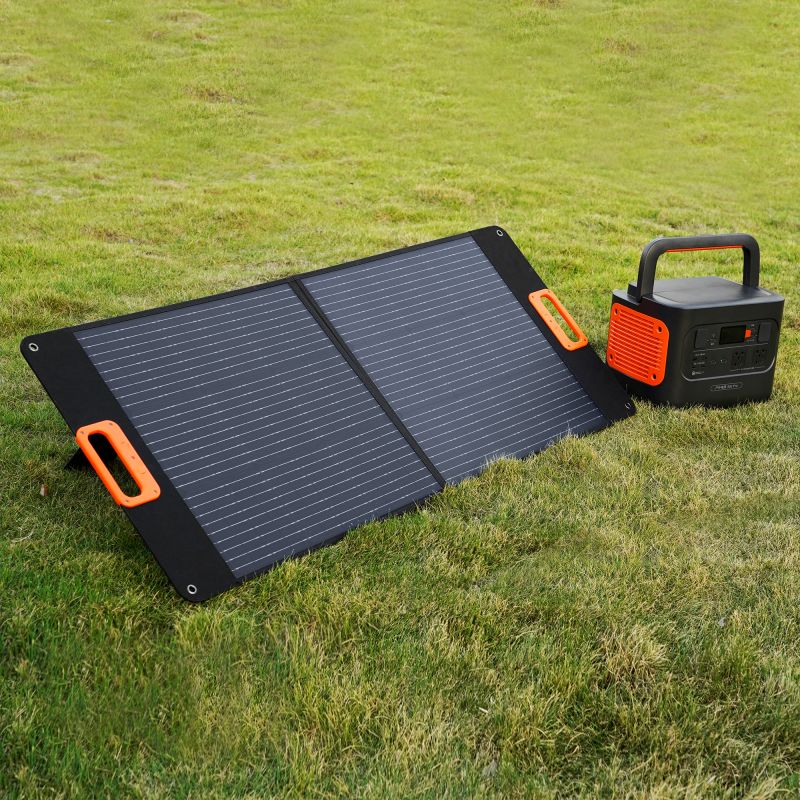

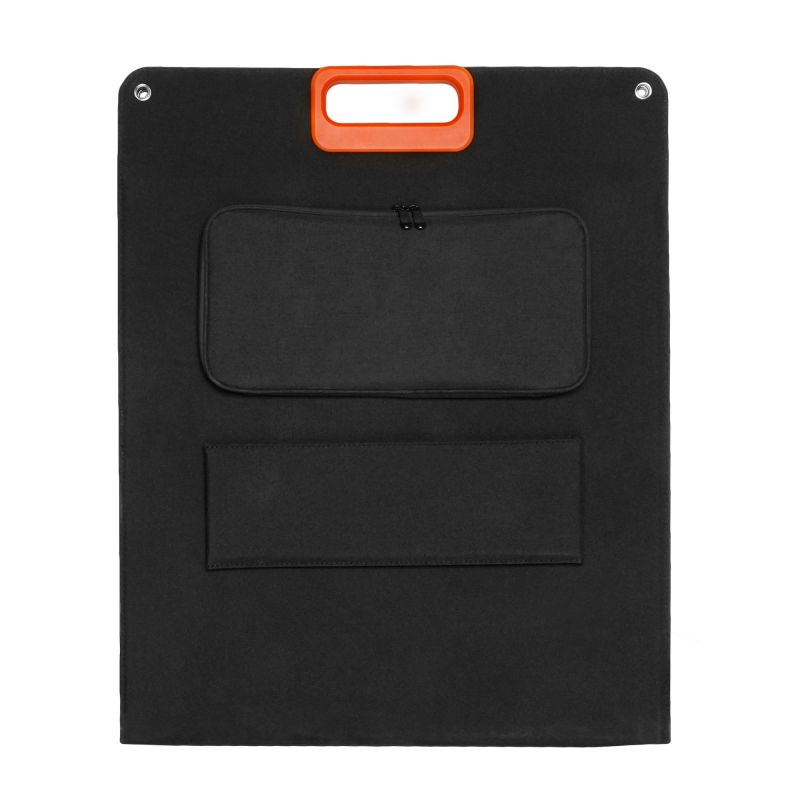

Foldable Solar Panel 100W with solar 4 in 1 connector

1.Power Output：100W Max

2.Cell type: Monocrystalline silicon

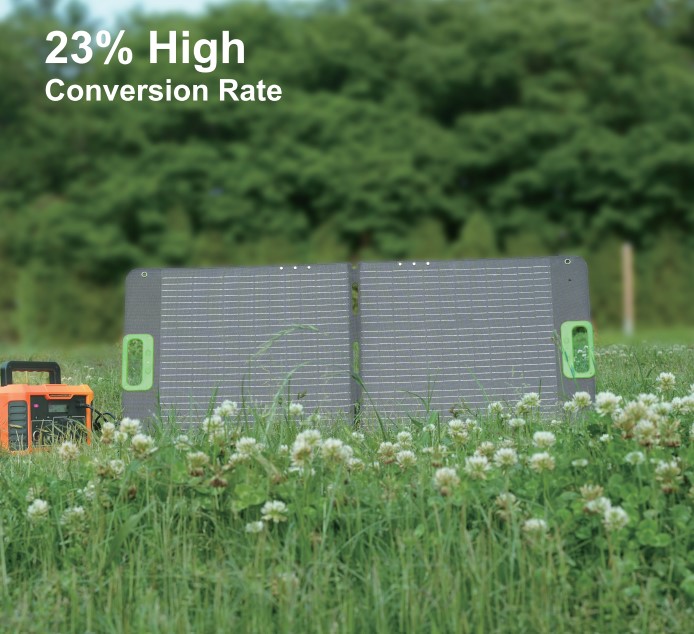

3. Cell transfer efficiency：23%

4.Fold: 2

5.Power Voltage：17.1V

6.Power Current：5.85A

7.Open Circuit Voltage：20.1V

8.Short Circuit Current: 6.15A

9.Output Connector: DC8020/XT60/Anderson/DC7909

10.Operating Temperature: -20℃ to +60℃

11.Storage Temperature: -20℃ to +60℃

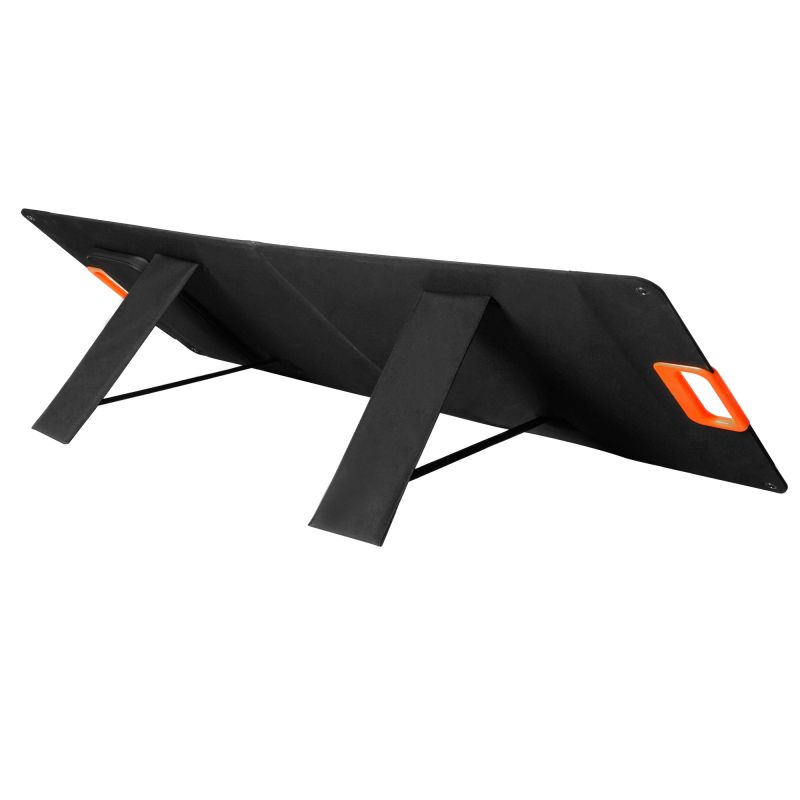

12.Bracket: Yes

13.DC Charging Cable Length: 2M

14.Folded Size：592*588*68mm

15.Unfolded Size: 1196*588*35mm

16.Net Weight: 3.4kg
